Ideal for: mid-size server rooms, networks, telecommunications systems, and life safety applications

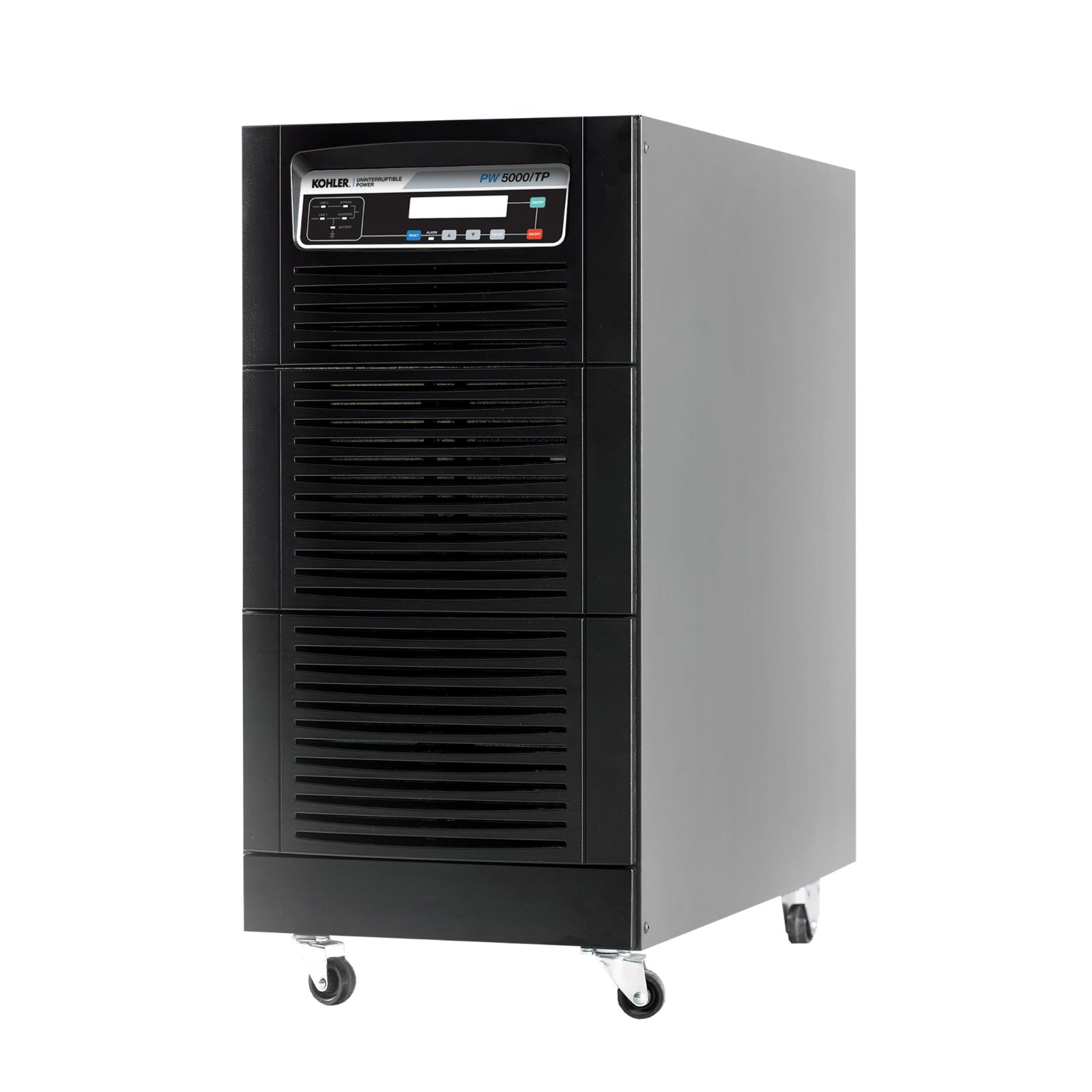

Standalone three-phase UPS system available in seven power ratings from 10 to 50kVA and in different cabinet sizes enabling you to choose a compact system with the ideal internal battery capacity for your critical load. A true online, double conversion, VFI (voltage frequency independent) UPS system that offers exceptional reliability and unprecedented power availability for mid-size server rooms, networks, telecommunication systems and industrial processes.
Compact UPS power supply system with intelligent battery management, 95.5% efficiency and a low carbon footprint. Delivers excellent value for money without compromising on performance.
Redundant critical circuits (RCC) duplicate the critical components and circuitry within the KOHLER PW 5000/TP to maximise productivity and minimise downtime.
Innovative transformerless design and Energy Saving Inverter Switching (ESIS) technology ensures high efficiency to reduce the total cost of ownership. Temperature controlled battery chargers extend lifetime performance to reduce running costs.
Compact design maximises floor space with a footprint of 0.25m2 at 10-25kVA and 0.4m2 at 50kVA. A power density of up to 100 kW/m2 saves space for other IT equipment.

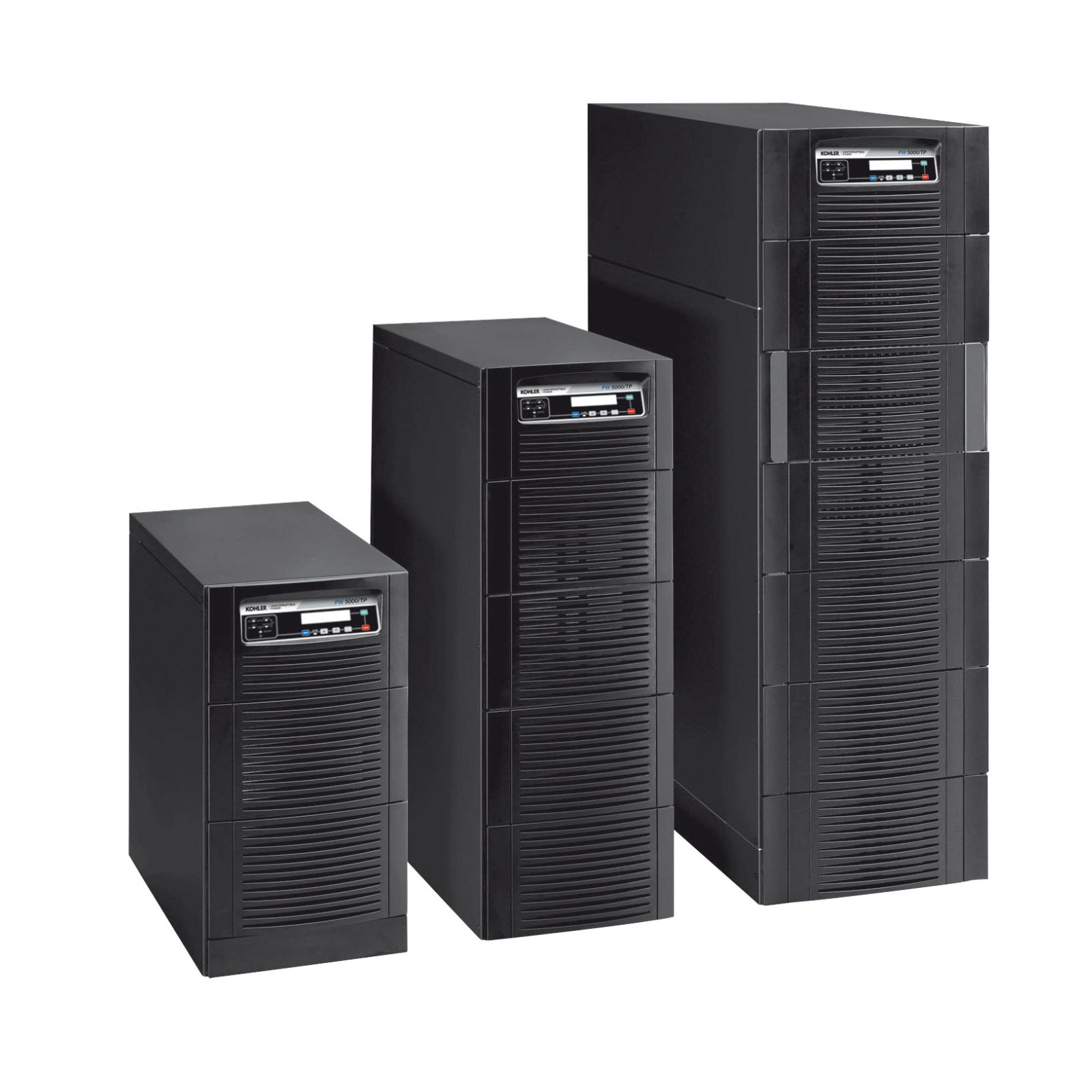

Available in three cabinet sizes, the 3 phase uninterrupted power supply offers flexible capacity for critical loads. The 10 to 25kVA units are available in two cabinet sizes and the 30 – 50kVA units are housed in a larger cabinet to accommodate different configurations of internal batteries.
Additional battery cabinets available that match perfectly with the UPS for scaling autonomy time.
Engineered to deliver energy efficiency of up to 95.5%, the KOHLER PW 5000TP helps to reduce carbon footprint and running costs.
To request more details about the KOHLER PW 5000/TP make an enquiry using the form below or call us on 0800 731 3269.
| Actual kVA | 10-50kVA |
|---|---|
| Type | Three-phase |
| Standalone / Modular | Standalone |
| Max. power per frame with N+1 redundancy | Up to 20kVA N+1 |
| Parallelable up to | 20 units (1MVA) |
| Rated output voltage range | 380/220; 400/230; 415/240V three-phase |
| Working mode | Online double conversion |
| Power density per m2 | Up to 112 kWm2 / 125kVA/m2 |
| Battery compartment | Included in UPS cabinet |
| Maintenance bypass | Standard |
| Network/web interface | Option |
| Volt free contacts | Standard |
| Input current distortion THDi @100% load | < 3% |
| Scalable (N+1) | Yes (horizontal) |
| Hot-swappable modules | No |
